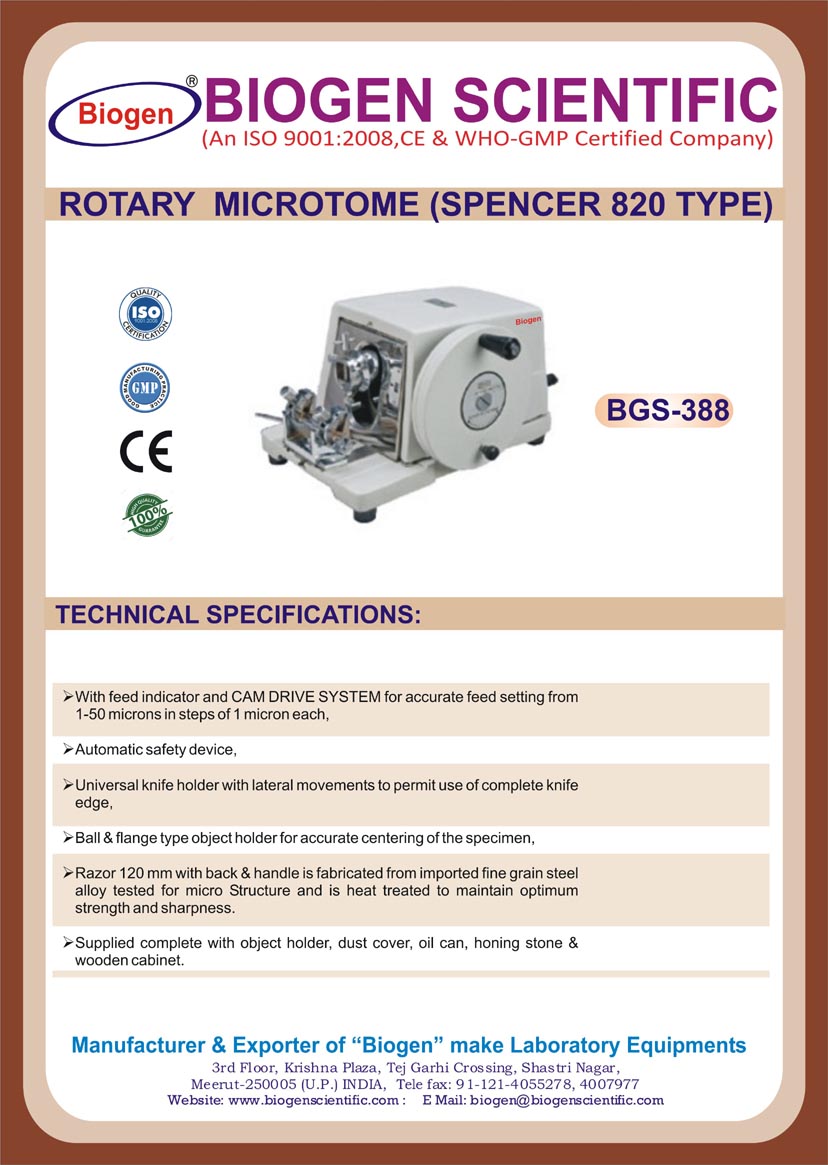

Technical Specification
| With feed indicator and CAM DRIVE SYSTEM for accurate feed. |
| Section Thickness Setting from 1-50 microns in steps of 1 micron each, |
| Knife Length: 120mm |
| knife Angle: 0 to 10° |
| Operation: Manual |
| Object feed: Manual |
| Max. Specimen Size: 32mm (Section) |
| Automatic safety device, |
| Universal knife holder with lateral movements to permit use of complete knife edge, |
| Ball & flange type object holder for accurate centering of the specimen, |
| Razor 120 mm with back & handle is fabricated from imported fine grain steel alloy. |
| Tested for micro structure and is heat treated to maintain optimum strength and sharpness. |
| Supplied complete with object holder, dust cover, and oil can, honing stone & wooden cabinet. |
