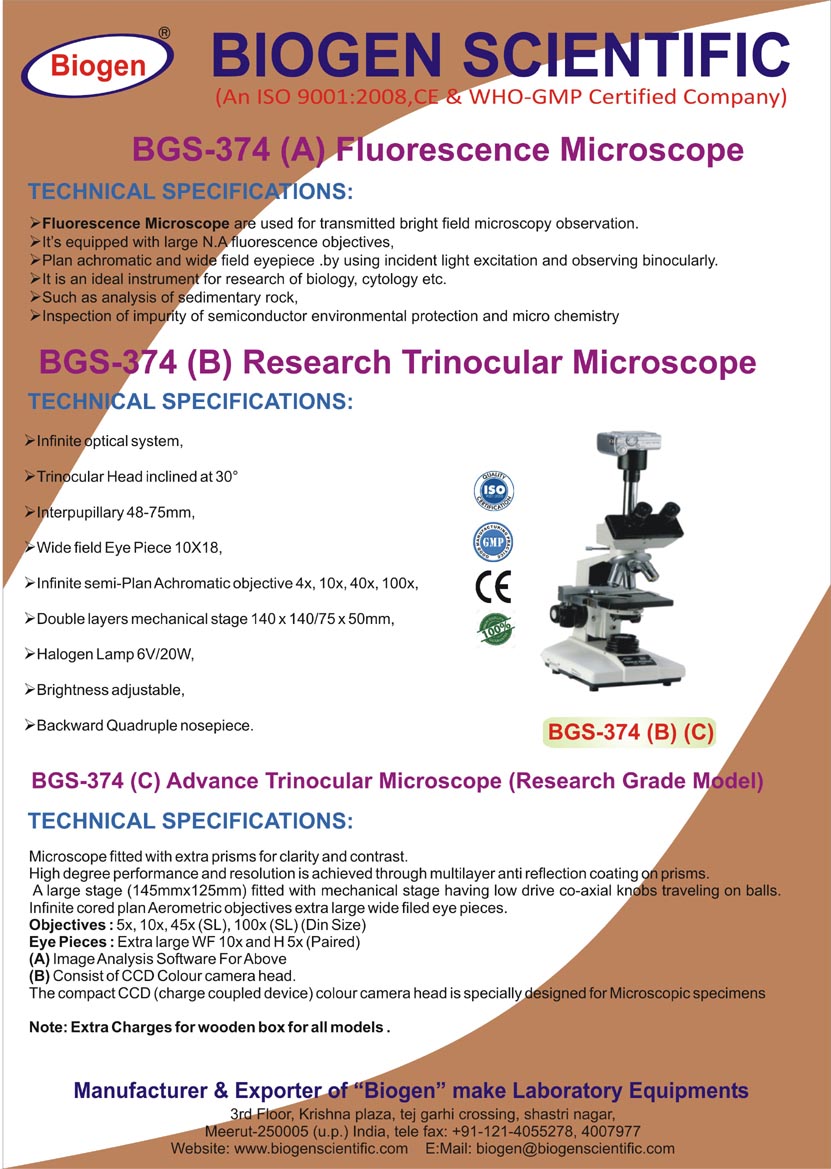

Technical Specification
| Fluorescence Microscope are used for transmitted bright field microscopy observation. |
| It s equipped with large N.A fluorescence objectives, plan achromatic and wide field eyepiece .by using incident light excitation and observing binocularly. |
| It s an ideal instrument for research of biology, cytology etc. such as analysis of sedimentary rock, inspection of impurity of semiconductor environmental protection and micro chemistry |
| BGS-374 (B) Research Trinocular Microscope |
| Infinite optical system, Trinocular Head inclined at 30º, Interpupillary 48-75mm, wide field Eye Piece 10X18, infinite semi-Plan Achromatic objective 4x, 10x, 40x, 100x, Double layers mechanical stage 140 x 140/75 x 50mm, Halogen Lamp 6V/20W, Brightness adjustable, Backward Quadruple nosepiece. |
| BGS-374 (C) Advance Trinocular Microscope (Research Grade Model) |
| Microscope fitted with extra prisms for clarity and contrast. High degree performance and resolution is achieved through multilayer anti reflection coating on prisms. |
| A large stage (145mmx125mm) fitted with mechanical stage having low drive co-axial knobs traveling on balls. Infinite cored plan Aerometric objectives extra large wide filed eye pieces. |
| Objectives : 5x, 10x, 45x (SL), 100x (SL) (Din Size) |
| Eye Pieces : Extra large WF 10x and H 5x (Paired) |
| (A) Image Analysis Software For Above |
| (B) Consist of CCD Colour camera head. The compact CCD (charge coupled device) colour camera head is specially designed for Microscopic specimens |
| Note: Extra Charges for wooden box for all models. |
