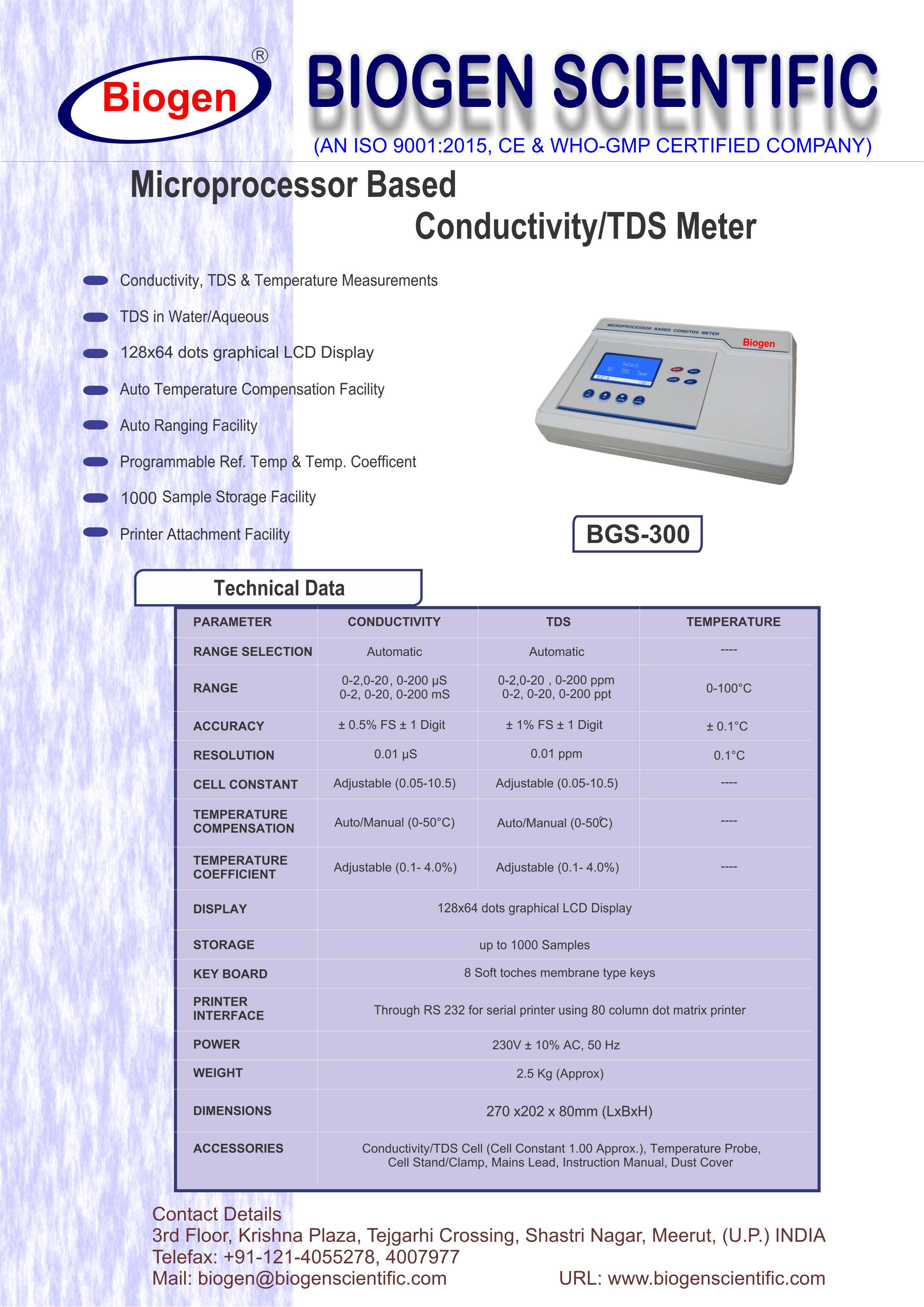

Technical Specification
| Features: Conductivity, TDS & Temperature Measurements. TDS in water/Aqueous. 128 x 64 dots graphical LCD Display. Auto Temperature Compensation Facility. Auto Ranging Facility. Programmable Ref. Temp & Temp. Coefficient. 1000 Sample Storage Facility. Printer Attachment Facility. |
| Range Selection: Conductivity and TDS (Automatic). |
| Range: Conductivity (0-2, 0-20, 0-200µS & 0-2, 0-20, 0-200mS), TDS (0-2, 0-20, 0-200 ppm & 0-2, 0-20, 0-200 ppt) and Temp. (0-100°C). |
| Accuracy: Conductivity (±0.5% FS ± 1Digit), TDS (±1% FS ± 1 Digit) and ± 0.1°C. |
| Resolution: Conductivity (0.01µS), TDS (0.01 ppm) and 0.1°C. |
| Cell Constant: Adjustable 0.05-10.5. |
| Temperature Compensation: Auto/ Manual (0-50°C). |
| Temperature Coefficient: Adjustable (0.1-4.0%). |
| Key Board: 8 Soft Touch membrane type keys |
| Printer interface: Through RS 232 for serial printer using 80 column dot matrix printer. |
| Power: 230V ± 10% AC, 50 Hz. |
| Dimensions: 270 x 202 x 80 mm ( L x B x H) |
| Optional Accessories: conductivity/TDS Cell, Temperature Probe, cell stand/clamp, mains lead, Instruction manual and Dust Cover. |
