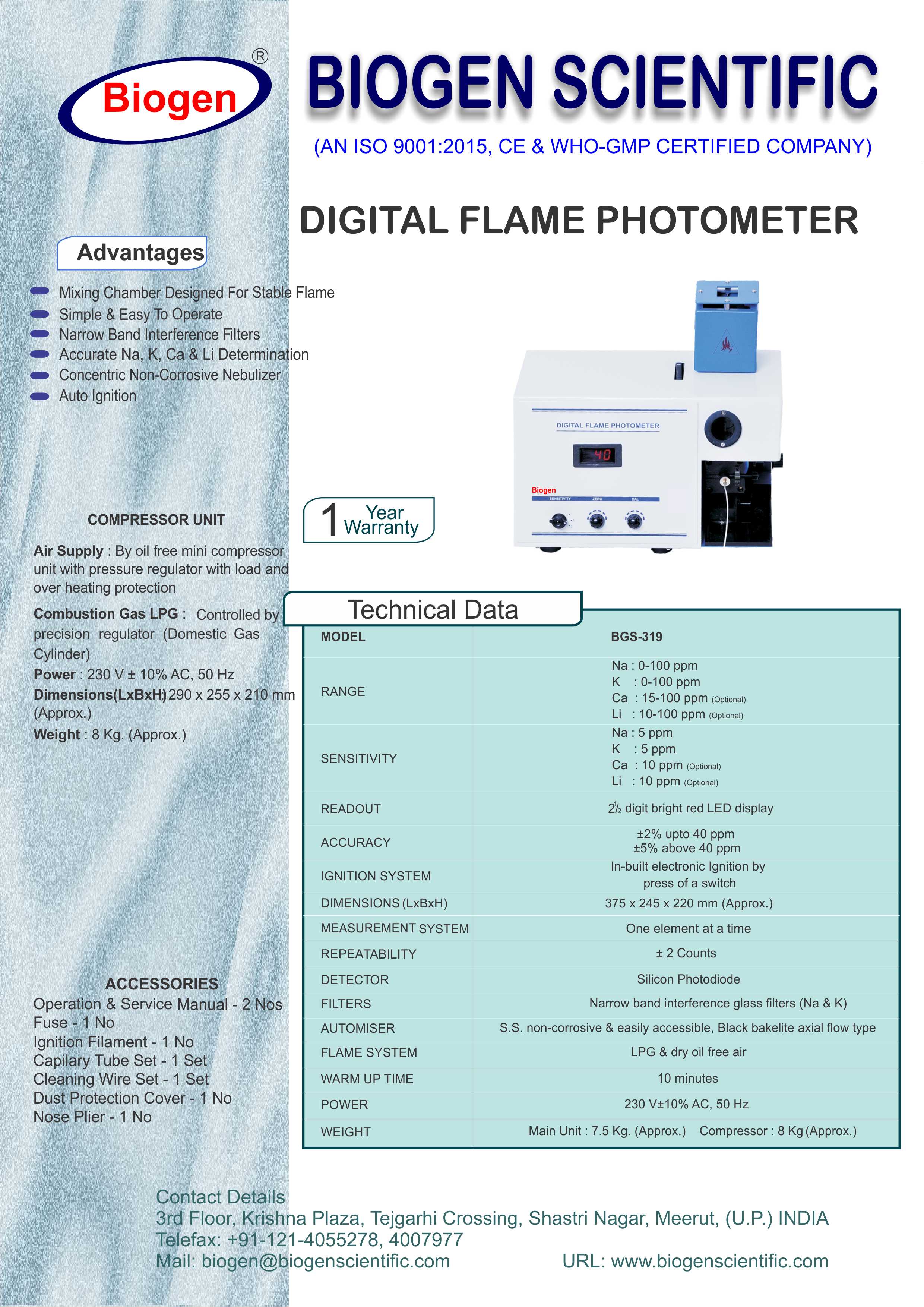

Technical Specification
| Mixing chamber designed for stable flame, simple & Easy to operate, Narrow band interference filters, Accurate Na, K, Ca & Li determination, concentric Non- corrosive Nebulizer and auto ignition. |
| Range: Na: 0 – 100 ppm, K: 0 – 100 ppm, Ca: 15 – 100 ppm (optional) and Li: 10 – 100 ppm (optional). |
| Sensitivity: Na: 5 ppm, K: 5 ppm, Ca: 10 ppm (optional) and Li: 10 ppm (optional). |
| Readout: 2 ½ digit bright red LED display. |
| Accuracy: ± 2% Upto 40 ppm and ± 5% above 40 ppm. |
| Ignition system: In-built electronic ignition by press of a switch. |
| Measurement system: one element at a time. |
| Repeatability: ± 2 Counts. |
| Detector: silicon Photodiode. |
| Automiser: S.S. non – corrosive & easily accessible, Black bakelite axial flow type. |
| Flame system: LPG & dry oil free air and Warm up time: 10 minute. |
| Power: 230 V ± 10% AC, 50Hz. |
| Accessories: operation & service manual, fuse, ignition Filament, capillary Tube set, Cleaning wire set, dust Protection Cover and Nose Plier. |
