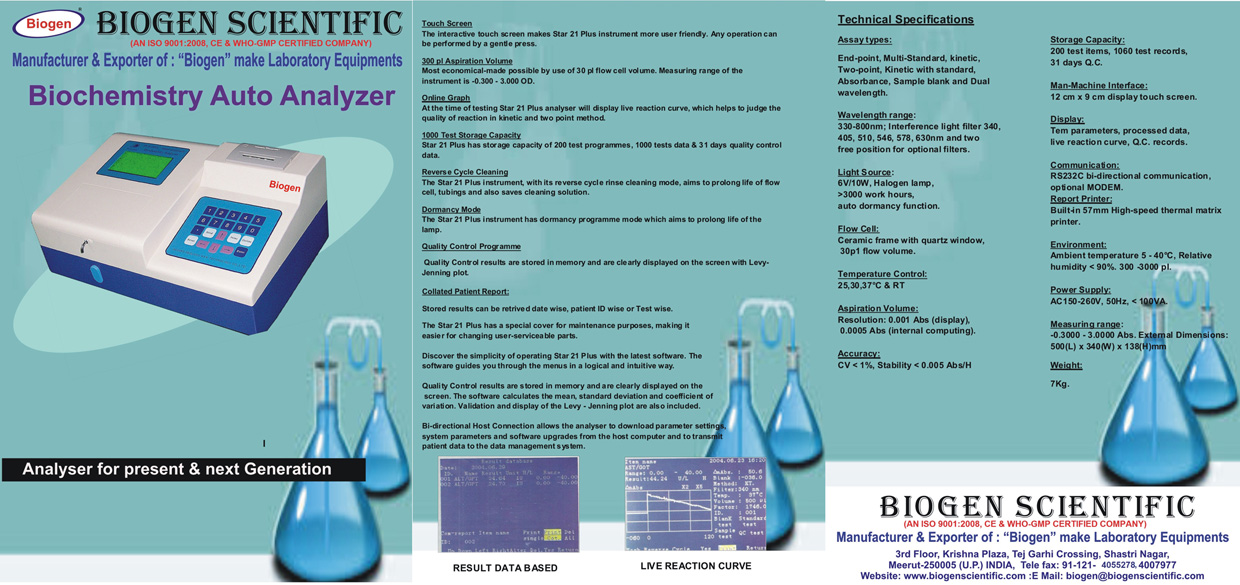

Technical Specification
| Assay Types: End-point, Multi-Standard, kinetic, Two-point, Kinetic with standard, Absorbance, Sample blank and Dual wavelength. |
| Wavelength Range: 330-800 nm; Interface light filter 340, 405, 510, 546, 578, 630nm and two free position for optional filters. |
| Light Source: 6V/10W, Halogen lamp, >3000 work hours, auto dormancy function. |
| Flow Cell: Ceramic frame with quartz window, 30ul flow volume. |
| Temperature Control: 25, 30, 37 deg C & RT, |
| Aspiration Volume: 300 -3000 ?l. |
| Measuring Range: -0.3000-3.0000 Abs. |
| Resolution: 0.001 Abs (display), 0.0005 Abs (internal computing). |
| Accuracy: CV <1%, Stability <0.005 Abs/H, |
| Storage Capacity: 200 test items, 1060 test records, 31 days Q.C. |
| Man-Machine Interface: 12 cm x 9 cm display touch screen. |
| Display: Item parameters, processed data, live reaction curve, Q.C. records. |
| Communication: RS232C bi-directional communication, optional Modem. Built-in 57mm High-speed thermal matrix printer. |
